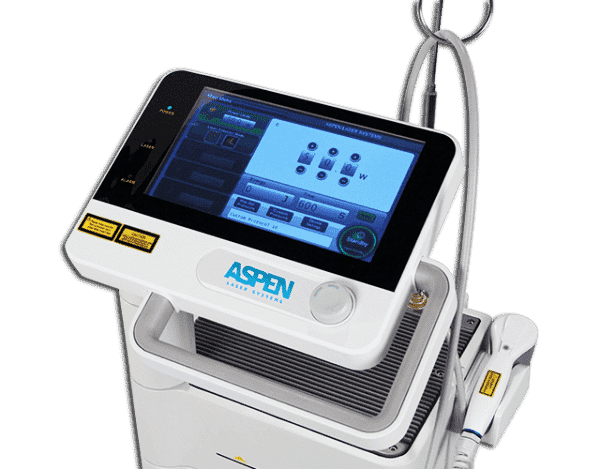

Pinnacle Pro Laser Series​

The Pinnacle Pro Series Laser System has been designed to provide a different and upscale appearance for the healthcare practice looking to provide a laser that provides the best clinical treatments and a dramatic appearance for their patients. This laser has been built to look similar to higher-end aesthetic lasers, often costing upwards of $300,000. Practice and patients love both the results and appearance of this laser unit.

Aspen-laser-Pinnacle-Pro-Laser-Series_-1-1

Pinnacle Pro Laser Series​

Innovations That Matter

Laser System Features and Highlights

The Pinnacle PRO Series is the flagship of Laser Systems.  With power ranging from 1 to 60 watts of output, you can treat with confidence, speed, and results
It is specially designed to
perform superior Therapy Treatments. By simply changing treatment protocols in the easy-to-use touch-screen software, the Pinnacle PRO Laser System will stay busy.

working for you all day long regardless of patient load, condition, or procedure needed. The versatility and power of the Pinnacle PRO Series Laser System made it the sought-after laser system by many practices.

Features

tech-icon
High Quality Laser Diode Technology
Laser diodes are the heart of the laser unit and have been selected for high levels of quality, efficiency and reliability. Featuring solid state technology, they are manufactured in Germany by Dilas, Inc. a recognized worldwide leader for producing the highest performing diodes. This ensures superior operating life resulting in long term savings in operating costs. The Self-Calibration feature requires no routine maintenance providing additional savings and value.
power-1
Maximum Range of Power Levels
Multiple power (watts) levels are available in different power configuration models from 1-45 watts. These power (watts) levels can provide significantly more energy than other therapeutic lasers. The higher power (watts) level laser models provide faster treatment times and delivery of optimal therapeutic dosages, an enhanced ability to treat difficult conditions, and enhanced clinical outcomes.
wavelength
Optimal Therapeutic Wavelengths
Each diode is wavelength specific and provides a single wavelength of 810nm, 980nm, or 1064mn. The wavelength of 980nm is proven to be very effective due to its low melanin, low water, low hemoglobin absorption rates, with the result of an optimal wavelength for stimulating tissue at greater depths of penetration.
touch
Large Color Touch Screen
The cornerstone of all laser therapy operations is a touchscreen featuring a state of the art, full color high resolution LCD panel. The extra-large viewing area provides a smooth, quick and effortless touch experience, while guaranteeing reliability, readability and safety. The screen brightness can be customized and adjusted for each operating environment.
fast
Fast Interactive User Interface and Menu
Featuring a robust software and intuitive interactive menu, operating the laser is faster with a simple user interface that provides minimal selections for starting or changing a treatment. Treatments can be administered and managed with three options: Manual Protocols using the power level, operating mode and timer selections; Preset Protocols that utilize a built-in database of protocols that are organized by anatomy and condition; and Custom Protocols that allows the user to create their own unique protocols.
check
Choice of Operating Modes
Two operating modes are built into the laser providing a choice between Continuous Wave (CW) or Pulsed Modes (Frequencies). Selection of the operating mode and specific power level (watts) can be made and adjusted through the color touchscreen or though external knobs on the laser unit. The Pulsed Mode can be operated using one of two options: Auto Select Hz Setting and T-ON and T-OFF Settings. These operating modes provide unlimited treatment options for maximizing clinical outcomes.
weight
Heavy Duty Laser Unit Design
The laser unit has been designed to be a work horse for the busy healthcare practice. A key component of the therapy laser’s design is a heavy duty internal cooling system with extra powerful fans that protect the laser from overheating. This is important when using the laser at high dosage levels that require a Continuous Wave (CW) operating mode throughout the day, which would cause other therapy lasers to overheat using the same power and dosage levels.
award1
Ergonomic Dual Treatment Handpiece
Laser therapy treatments are administered through a lightweight, ergonomically designed handpiece with a unique T-shape configuration. Multiple treatments can be administered throughout the day with minimal stress on the practitioner. The handpiece offers dual treatment options for On Skin Treatments with a special curved lens and Off Skin Treatments with a metal spacer attachment. A Built-In Finger Switch integrated into the handpiece allows the laser treatment beam to be turned off or on with a single tap. An optional traditional straight therapy handpiece is also available for use with the laser.
tape1
Maximum Laser Treatment Beam Size
The treatment beam emitted from the therapy handpiece features a large 30mm diameter size that ensures Even Energy Delivery Technology with an enhanced ability for treatment of large areas of the body.
laser-2.0
Reliable Fiber Optic Laser Beam
The fiber optic cable has been developed for maximum flexibility during use, while maintaining overall durability to ensure reliable and consistent laser energy transmission.
speed
Maximum Energy Laser Treatment
The Aspen Laser can deliver more energy than other therapy lasers. More power equates to deeper penetration, faster treatment times and delivery of the proper therapeutic dosage, an enhanced ability to treat difficult conditions, and ultimately better clinical outcomes.
Edit

Specifications

Description Pinnacle PRO Series

Model

Pinnacle PRO Series 60 watt

SKU

AL-PROV60x

Laser Type

GaAlAs Diode Laser

Dimensions

470(W) x 420 (L) x 1150 (H) mm

Weight

73 lbs

Wavelength, Laser

980nm / 810nm / 980nm + 810nm

Maximum Power

60 watts

Operation Modes

Continuous Wave (CW) and Pulse

Pulse Duration

10μs-3s

Repetition Rate

0.2Hz-20KHz

Fiber Sizes

550 uM

Fiber Connector

SMA905 Connector

Pilot Beam

Red Diode Laser Of 635nm, Power<5mW

Control Mode

14″ True Color Touch Screen<5mW

Voltage/Current Rating

110/220 VAC, 5A , 50/60 Hz

Safety Compliance

CE0197

Pinnacle PRO Series

Model

Pinnacle PRO Series 60 watt

SKU

AL-PROV60x

Laser Type

GaAlAs Diode Laser

Dimensions

470(W) x 420 (L) x 1150 (H) mm

Weight

73 lbs

Wavelength, Laser

980nm / 810nm / 980nm + 810nm

Maximum Power

60 watts

Operation Modes

Continuous Wave (CW) and Pulse

Pulse Duration

10μs-3s

Repetition Rate

0.2Hz-20KHz

Fiber Sizes

550 uM

Fiber Connector

SMA905 Connector

Pilot Beam

Red Diode Laser Of 635nm, Power<5mW

Control Mode

14″ True Color Touch Screen<5mW

Voltage/Current Rating

110/220 VAC, 5A , 50/60 Hz

Safety Compliance

CE0197

Your Pinnacle Series Laser System Includes:

  Laser Control Unit
 Ergonomic Therapy Handpiece
 Handpiece Holder
 Fiber Optic Cable-400uM
 Interlock
 Power Cord
 Warning Sign
 Safety Goggles (2 pair)
 User Training Manual
 User Protocol Manual
