Pinnacle Series Laser Systems

The Pinnacle Series Laser System features advanced laser technology and can deliver more energy than other therapy lasers (Maximum Energy Laser Treatment). The additional power coupled with our optimal wavelength and treatment beam size, result in deeper penetration, significantly faster treatment times and delivery of the proper therapeutic dosage. These features provide healthcare professionals an enhanced and superior ability to treat difficult conditions and ultimately provide better clinical outcomes to all patients.

Pinnacle Series Laser Systems

More Power – More Treatment Options – More Results

Innovations That Matter

Laser System Features and Highlights

The Pinnacle Series Laser System is the most popular Aspen laser model. Uniquely featuring the broadest laser power range of 1 to 60 watts of therapeutic output, it provides the “power to expand treatment options”, resulting in optimal dosage levels administered. Delivering optimal dosages of healing therapeutic energy is a key to clinical success and has been shown to be a major role in achieving reliable and positive therapeutic outcomes. Incorporating a large color touch-screen with easy to use software,

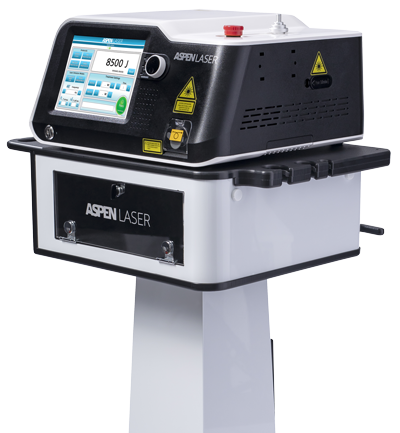

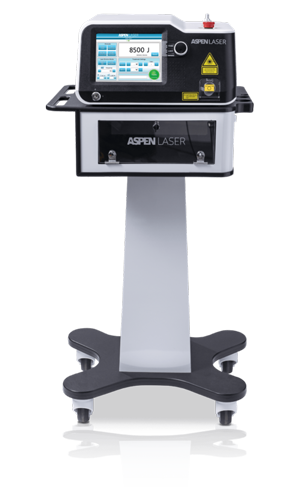

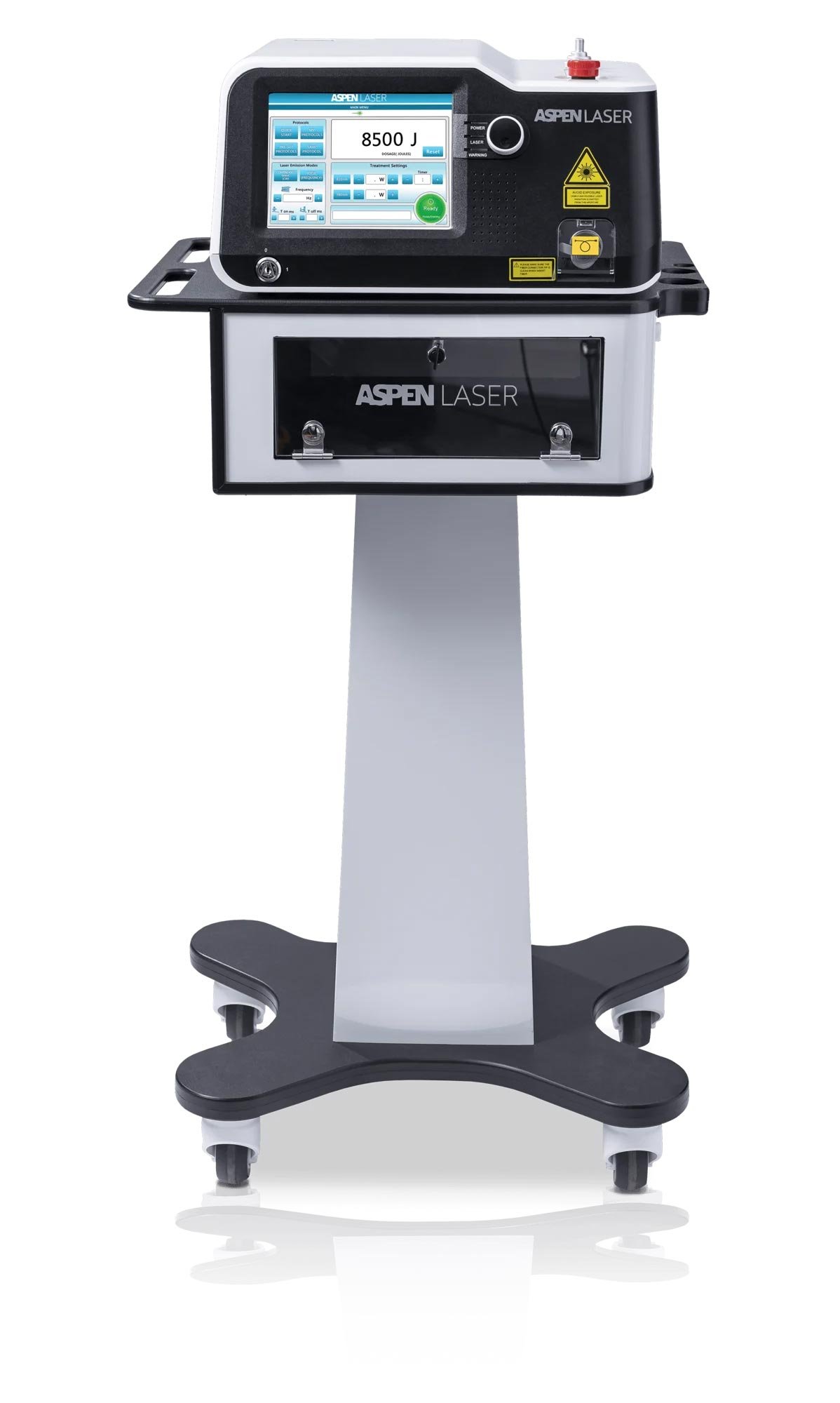

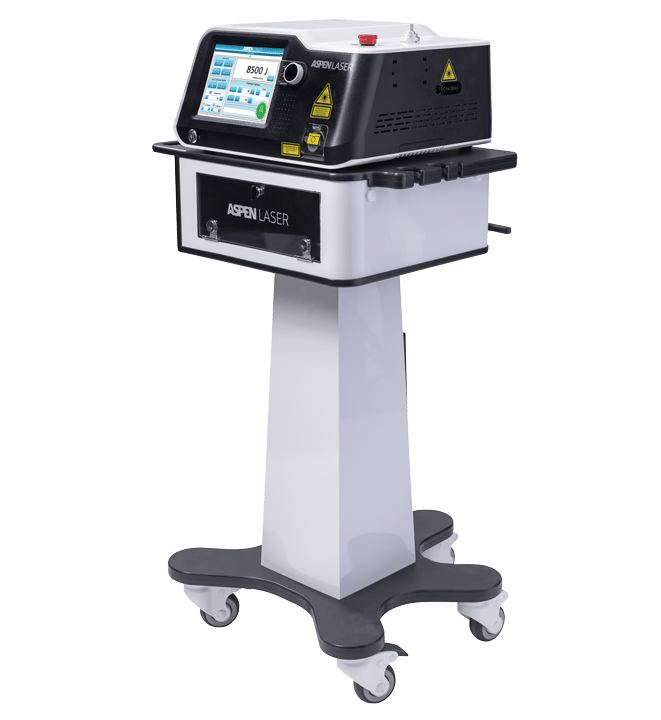

the Pinnacle Laser System will stay busy working for you all day long regardless of patient condition or treatment needed The versatility and power of the Pinnacle Series Laser System have made it the sought after laser system by many medical practices. The Pinnacle Series Laser System is transportable, with a custom rolling cart to move between treatment areas, and includes a well-designed wheeled mobile travel case for transport from location to location.

Single or Dual-Wave Technology

810nm Wavelength

The 810nm wavelength allows rapid activation of the haemoglobin oxygenation process: transferring the correct energetic supply to muscles and tendons, facilitating regeneration. Clinical studies indicate that 810nm largely affects mitochondrial cytochrome c oxidase by increasing cytosolic calcium while decreasing mitochondrial calcium.

980nm Wavelength

The 980nm wavelength optimizes the action on thermal and mechanical receptors for a rapid analgesic effect, resulting in improved pain control, circulation, and muscle relaxation. Clinical studies indicate that 980nm primarily affects temperature-gated calcium ion channels.

Features

Laser diodes are the heart of the laser unit and have been selected for high levels of quality, efficiency and reliability. Featuring solid state technology, they are manufactured in Germany by Dilas, Inc. a recognized worldwide leader for producing the highest performing diodes. This ensures superior operating life resulting in long term savings in operating costs. The Self-Calibration feature requires no routine maintenance providing additional savings and value.

Multiple power (watts) levels are available in different power configuration models from 1-60 watts. These power (watts) levels can provide significantly more energy than other therapeutic lasers. The higher power (watts) level laser models provide faster treatment times and delivery of optimal therapeutic dosages, an enhanced ability to treat difficult conditions, and enhanced clinical outcomes.

Each diode is wavelength specific and provides a single wavelength of 980nm (810nm wavelength is also available). The longer wavelength of 980nm is proven to be very effective due to its low melanin, low water, low hemoglobin absorption rates, with the result of an optimal wavelength for stimulating tissue at greater depths of penetration.

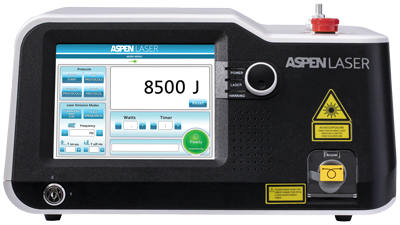

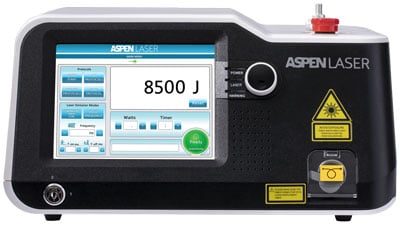

The cornerstone of all laser therapy operations is a touchscreen featuring a state of the art, full color high resolution LCD panel. The extra-large viewing area provides a smooth, quick and effortless touch experience, while guaranteeing reliability, readability and safety. The screen brightness can be customized and adjusted for each operating environment.

Featuring a robust software and intuitive interactive menu, operating the laser is faster with a simple user interface that provides minimal selections for starting or changing a treatment. Treatments can be administered and managed with three options: Manual Protocols using the power level, operating mode and timer selections; Preset Protocols that utilize a built-in database of protocols that are organized by anatomy and condition; and Custom Protocols that allows the user to create their own unique protocols.

Two operating modes are built into the laser providing a choice between Continuous Wave (CW) or Pulsed Modes (Frequencies). Selection of the operating mode and specific power level (watts) can be made and adjusted through the color touchscreen or though external knobs on the laser unit. The Pulsed Mode can be operated using one of two options: Auto Select Hz Setting and T-ON and T-OFF Settings. These operating modes provide unlimited treatment options for maximizing clinical outcomes.

The laser unit has been designed to be a work horse for the busy healthcare practice. A key component of the therapy laser’s design is a heavy duty internal cooling system with extra powerful fans that protect the laser from overheating. This is important when using the laser at high dosage levels that require a Continuous Wave (CW) operating mode throughout the day, which would cause other therapy lasers to overheat using the same power and dosage levels.

Laser therapy treatments are administered through a lightweight, ergonomically designed handpiece with a unique T-shape configuration. Multiple treatments can be administered throughout the day with minimal stress on the practitioner. The handpiece offers dual treatment options for On Skin Treatments with a special curved lens and Off Skin Treatments with a metal spacer attachment. A Built-In Finger Switch integrated into the handpiece allows the laser treatment beam to be turned off or on with a single tap. An optional traditional straight therapy handpiece is also available for use with the laser.

The treatment beam emitted from the therapy handpiece features a large 30mm diameter size that ensures Even Energy Delivery Technology with an enhanced ability for treatment of large areas of the body.

The fiber optic cable has been developed for maximum flexibility during use, while maintaining overall durability to ensure reliable and consistent laser energy transmission.

The Aspen Laser can deliver more energy than other therapy lasers. More power equates to deeper penetration, faster treatment times and delivery of the proper therapeutic dosage, an enhanced ability to treat difficult conditions, and ultimately better clinical outcomes.

Specifications

Description	Desktop – Pinnacle Series
Model	Pinnacle Series 30 Watt / 60 Watt
Sku	AL-V30x / AL-V60x
Laser Type	GaAlAs Diode Laser
Dimensions	400(W)385(L)200(H) mm
Weight	28lb
Wavelength, Laser	980nm / 810nm / 980nm + 810nm
Maximum Power	30 watts / 60 watts
Operation Modes	Continuous Wave (CW) and Pulse
Pulse Duration	10μs-3s
Repetition Rate	0.2Hz-50KHz
Fiber Sizes	550 uM
Fiber Connector	SMA905 Connector
Pilot Beam	Red Diode Laser Of 635nm, Power<5mW
Control Mode	True Color Touch Screen<5mW
Voltage/Current Rating	110/220 VAC, 5A , 50/60 Hz
Safety Compliance	CE0197
